Honeywell Multivariable Transmitters

Honeywell’s SmartLine Multivariable Transmitters (SMV800) extend its proven smart technology to the simultaneous measurement of three separate process variables according to standard industry methods for air, gases, steam and liquids. They also offer the ability to calculate compensated mass or volume flow rate as a fourth process variable. In addition, meter body-only components are also available to support third party and OEM metering solutions.

• Accuracy of up to 0.04% for differential pressure
• Accuracy of up to 0.0375% for static pressure
• Accuracy of up to 0.2°C for temperature
• Mass flow accuracy of up to 0.6%
• Built-in static pressure & temperature compensation
• Rangeability of up to 400:1
• Compensated flow response time of up to 2x per second
• Multiple local display capabilities
• Universal transmitter wiring
• Modular design characteristics
• Universal temperature input option
• HART 7/DE protocol support
• Built-in fail-safe feature for flow measurement.

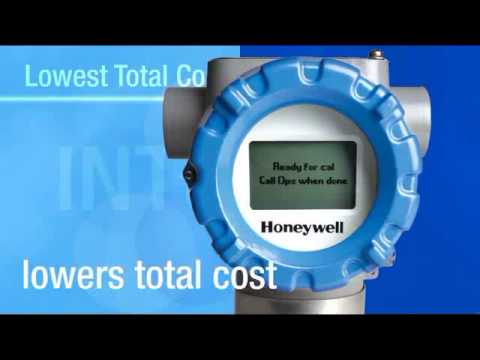

Honeywell’s SmartLine ® ST700 Pressure Transmitters include absolute pressure, gauge pressure, flange mount and remote seal transmitters that meet industry requirements in performance, stability, reliability and rangeability. With innovative modularity and an intuitive human machine interface (HMI), these products are ideal for a wide range of industrial process applications.

• Accuracy up to 0.05%
• Stability up to 0.02% per year for five years
• 100 ms response time
• Turndown ratios up to 100:1​ ​
• Modularity with field-replaceable units
• Automatic pressure and temperature compensation
• Comprehensive onboard diagnostic capabilities
• Alphanumeric display capability
• External zero, span and configuration capability
• Integral Dual Seal design based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• Overpressure protection
• Compliance with SIL 2/3 requirements
• Universal or traditional terminal electrical connections.

SmartLine Application and Validation Tool

Honeywell’s SmartLine^®​ ST800 Pressure Transmitter family includes absolute pressure, gauge pressure, draft range pressure, flanged and remote seal transmitters. Refineries, chemical and pharmaceutical plants and paper mills around the globe rely on these transmitters for accurate and consistent pressure measurement.

• Accuracy of up to 0.025%
• Stability of 0.01% per year
• 80 ms response time
• Turndown ratios up to 400:1
• Automatic pressure and temperature compensation
• Modularity with field-replaceable units
• Comprehensive onboard diagnostic capabilities
• Unequaled display capabilities
• External zero, span and configuration capability
• Universal terminal electrical connections
• Integral Dual Seal design based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• Overpressure protection
• Compliance with SIL 2/3 requirements
• Unique integration capabilities with Experion® systems
• Intuitive human machine interface (HMI)
• 15-year warranty

SmartLine Application and Validation Tool

Application area:
Liquids and gases

The VEGABAR 82 pressure transmitter can be used universally for the measurement of gases, vapours and liquids. Substances such as sand can be handled easily thanks to the abrasion-resistant ceramic measuring cell. The VEGABAR 82 offers maximum reliability. The transmitter can be used in all industries. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

VEGABAR 82 – VEGA Official Website

Application area:
Liquids and gases even at high pressures

The VEGABAR 83 is a pressure transmitter for pressure measurement of gases, vapours and liquids in all industries. The VEGABAR 83 offers special advantages in applications with high pressures. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

VEGABAR 83 – VEGA Official Website

ITT NeoDyn is a leading manufacturer of high quality and reliable industrial switches. Our compact, adjustable, pressure, temperature, hazardous area and vacuum switches support a variety of applications throughout the world. Our legacy of competitively priced products and on time delivery, guarantee that you have the proven performance in the product that you need to support your specific requirements when you need it most. With a strong focus in the aerospace,  general industrial, energy and chemical markets, we are your first choice for all of your switch product needs.

ITT Neo-Dyn has a vast range of products and solutions including the following for use in general and hazardous locations.

• Pressure
• Vacuum
• Differential
• Temperature
• Sanitary
