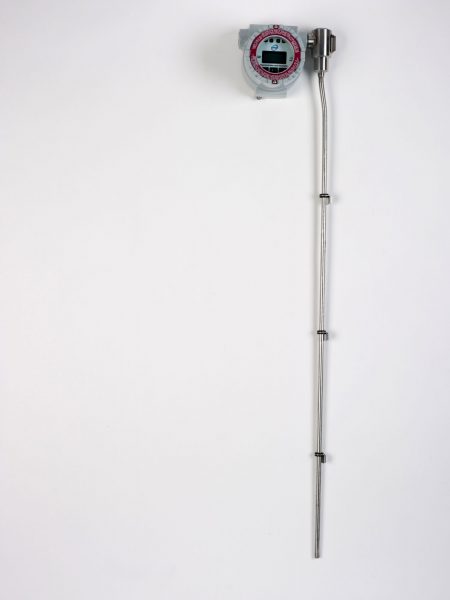

The MGT-6000 Magnetostrictive Level Transmitter is a loop powered non-contact level measurement device that is mounted externally to a magnetic level gauge. Utilizing the magnetostrictive principle and time-of-flight calculations allow the MGT-6000 to provide a fast and accurate measurement of float position and, ultimately, liquid level in the gauge. Vibration-isolating elastomeric bushings ensure continuous operation in high vibration services.
- 2 wire, loop powered (24VDC nominal)
- LCD Display (4-20mA, %, in, and/or cm)
- Generic HART communication
- Quick-Cal function for simple recalibration
- Isolated from process pressure, temperature, and vibrations
- Long Measuring Lengths (up to 35ft)
- Retrofit to most magnetic level gauges with no process interruption
- Dual level outputs (total level and interface)
- Epoxy-Coated Aluminum Enclosure
- Class I, Division 1, Groups A, B, C, D
- Class II and Class III, Division 1, Groups E, F, G
- Class I, Division 2, Groups A, B, C, D
- Class II and Class III, Division 2, Groups E, F, G
- Intrinsically Safe Class I / II / III, Division 1, Groups A, B, C, D, E, F, G
- NEMA 4X
